NanoPC T3 Single Board Computer


Product Introduction

The NanoPC-T3 octa-core single board computer is designed and developed by FriendlyARM Company. It uses the Samsung Octa-Core Cortex-A53 S5P6818 SoC. Compared to the NanoPC-T2 the NanoPC-T3 its equipped with additional interfaces and ports, along with a more powerful SoC. Its dynamic frequency scales from 400M up to 1.4GHz. The NanoPC-T3 has 8G eMMC on-board flash, audio jack, video input/output interfaces, built-in WiFi, Bluetooth and Gbps Ethernet port. In addition, the NanoPC-T3 has power management, on board porcelain antenna and serial debug port. To avoid overheat issues the NanoPC-T3 has a heat sink with mounting holes for max clamping and optimal heat conductivity.


It has two camera interfaces: a DVP camera interface and a MIPI-CSI interface, and four video interfaces: HDMI 1.4A, LVDS, parallel RGB-LCD interface and MIPI-DSI interface. It supports RTC and has RTC interface pins. It has four USB ports with two being type A ports and two being 2.54 mm pitch pin-headers. the board  NanoPC-T3 supports popular OS systems such as Android 5.1, Debian and Ubuntu trough open source community and company support forum.

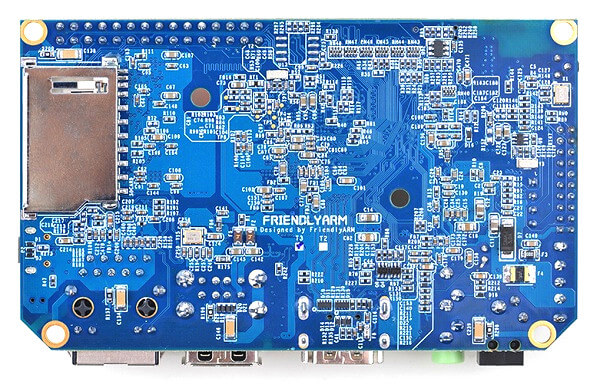

NanoPC-T3 | Back View




NanoPC-T3 specifications:
  • SoC: Samsung S5P6818 octa core Cortex A53 processor @ up to 1.4GHz with
  • GPU: Mali-400MP
  • System Memory: 1 or 2GB 32bit DDR3 RAM
  • Storage: 8GB eMMC flash, 1x SD card slot
  • Connectivity: Gigabit Ethernet (RTL8211E), 802.11 b/g/n WiFi and Bluetooth LE 4.0 (Ampak AP6212) with on-board chip antenna and IPX antenna connector
  • Video Output / Display I/F: 1x HDMI 1.4a, LVDS, MIPI DSI, parallel RGB LCD
  • Audio I/O: HDMI, 3.5 mm audio jack, on-board microphone
  • Camera: 1x DVP interface, 1x MIPI CSI interface
  • USB: 2x USB 2.0 type A host ports; 1x micro USB 2.0 OTG port; 2x USB 2.0 host ports via 8-pin header
  • Expansions Headers: 30-pin header for GPIO, 8-pin header for power signals, reset and LED 1-2
  • Debugging: 4-pin header for serial console
  • Misc: Power switch, reset button, 1x power & 2x user LEDs, RTC battery header, boot selection button (SD card / eMMC)
  • Power Supply: 5V/2A via power barrel; AXP228 PMIC
  • Dimension: 100 x 60 mm (6-layer PCB)
